TSM Control Systems Product Line

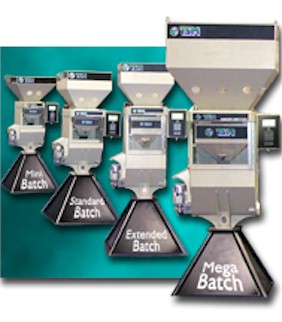

TSM Gravimetric Batch Blenders
TSM Control Systems have been manufacturing batch weighing systems since 1985. The Sigmabatch TM series of gravimetric batch blenders are designed for optimum performance when mounted directly on the extruder or for off-line use. They provide accurate blend ratios and batch homogeneity with a consistency superior to competitive blenders, based on the TSM patented mixing technique.
Compact Heavy-Duty Design: The TSM SigmaBatchTM range of blenders are compact with a low height profile. They are RUGGEDLY CONSTRUCTED of heavy gauge steel to withstand the most rigorous of operating conditions. The load cell is overload protected and guarded from physical damage.
Standard Features
- Guaranteed rapid return on investment
- Blend accuracies of +/-0.1%
- Remote operator console (up to 1000 ft cable)
- Quick cleaning features for rapid job-changes
- Optional extrusion control with Lb/Hr, Weight-Per-Length or thickness with unique TSM Rapid Start-up Software and overall control accuracy to +/-0.5% or better
Available Models
|
|

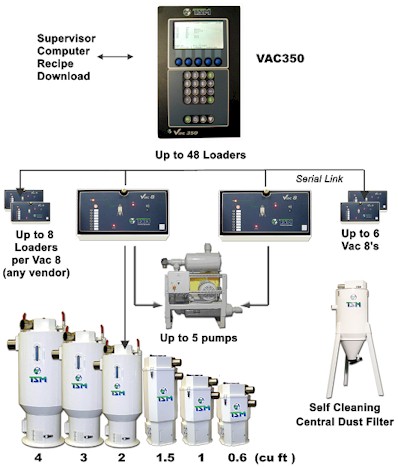

TSM Material Handling Systems

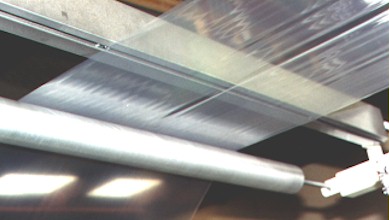

TSM Lay-flat Control Systems
- Automatic width measurement and control system
- Reduces start-up time
- Reduces scrap
- Improves finished product quality
- Increases yield and efficiencies
- Easily mounted directly on new or existing blown film lines
- Can be installed and started up in a matter of hours
- 3-Month Payback from reduced overspec is typical
TSM Scanner
The single scanner houses two dynamic infra-red sensors which automatically seek and track the edges of the film, regardless of color or thickness. Each sensor acts independently, allowing the system to maintain accuracy even with dramatic web wander.
The width scanner is easily mounted after the nip rolls. A single scanner can cover a width up to 90". For measurement and control of wider films, two scanner assemblies are required.
TSM Extrusion Control Systems

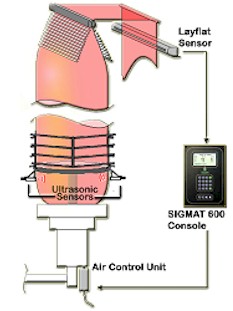

TSM non-IBC Web Width Control System for Stationary or Oscillating Die
- Control: The width is computed and displayed on the Sigmat 600 console. Any variation from the setpoint is corrected via a venturi air control unit. Measurement resolution is 0.01" with a display accuracy of 0.1".
- Standard Extrusion Line with Fixed Air Inlet: The blown film bubble diameter is controlled by a venturi air correction unit, which regulates the factory air supply, to inflate and deflate the bubble.
- Fully Rotating Die (Rotating Air Input): When the die is fully rotating, a standard venturi-based air correction unit connected to the factory air supply cannot be used. In this case, a small air compressor with a radio transmitter and receiver is mounted to the die to inflate and deflate the bubble.
- IBC Lines: Complete packages for Internal Bubble Cooling systems are available with sonic bubble sensors, blowers, and stabilizing cages.

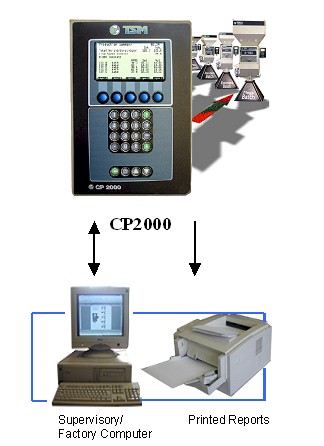

TSM Extrusion Control System CP2000 Supervisor
- Easy to use
- Displays:
- Resin blend recipes
- Layer thickness ratios
- Extruder throughputs
- Line speed
- Weight per length
- Operator can download recipes and layer ratios to all 5 gravimetric blenders
- Displays shift, roll, order and material inventory reports for overall production
- Displays alarms for individual layers display buttons
- Allows control and monitoring of vacuum system status information from TSM Vacuum Loaders
- Increase or decrease layers simultaneously using up and down arrow buttons
Exceptional Performance & Value
- For central control and monitoring of a co-extrusion line with up to 5 extruders.
- No need to consolidate information from separate extruders.
- No need to view separate screens.
- Can be retrofitted to existing TSM blenders and vacuum loading systems.
