QMi, Inc. Product Line
QMi Hole Punch Systems

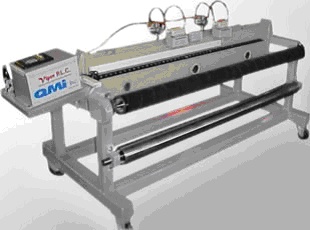

QMi PLC Hole Punch System
- Onboard programmable logic control system
- Easily programmed to punch any repeat or staggered pattern desired
- Line speed following capacity
- Input signal for bag seam indicator or optical reader
- Virtually eliminates air cylinder failure or replacements
- Economical alternative to the PC based control
With our Viper P.L.C. onboard programmable logic control system the line speed is automatically calculated to maintain the hole spacing desired. From the moment the machine is turned on, a good product is ensured thereby reducing scrap material. This machine can easily be programmed to punch any repeat spacing or staggered pattern desired with ease. The programming is so simple that it can be done with just a few key strokes. Our design eliminates the issues relating to air cylinder failure and replacements, which are common with other machines. This control is an economical alternative for less complex hole punching requirements. The Viper machines are suitable for use with extruders, bag machines, print presses, or slitters, and more. Each machine quoted includes a 100% heavy-duty cycle vacuum system. The Industrial cyclone type is rated for continuous operation. The chips are deposited in a container for easy disposal which also helps in keeping the area clean and safe.
A SIMPLE SOLUTION TO A COMPLEX PROBLEM

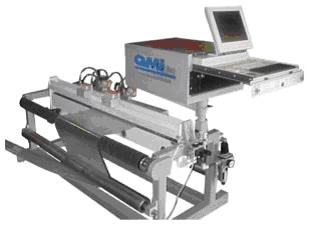

QMi Computer Based Hole Punch System
- State-of-the-Art programming technology
- Line speed following capacity
- PC based control to store onboard over 50 patterns for instant recall
- Complex pattern capability
- Input signal for bag seam indicator or optical reader
- Virtually eliminates air cylinder failure or replacements
The key to the Viper C.C. is our micro-processor controller which gives the programmer and operator control over each individual punch. Controlling each punch independently along with automatic line speed calculation enables the Viper C.C. machine to punch virtually any pattern imaginable. These patterns could be as simple as a linear or diamond set, or as complex as arcs, circles, graduated hole-patterns, scrolling, letters, or holes around a printed design. More than 50 different patterns can be programmed and stored onboard for quick recall, significantly reducing change-over time and job setup. Additional programs can be stored on a 3.5" diskette for long term storage. Our design eliminates the issues relating to air cylinder failure and replacements, which are common with other machines. The Viper machines are suitable for use with extruders, bag machines, print presses, or slitters, and more.
Each machine quoted includes a 100% heavy duty cycle vacuum system. The Industrial cyclone type is rated for continuous operation. The chips are deposited in a container for easy disposal which also helps in keeping the area clean and safe.
QMi Single Hole Punch Unit
Using the same housing assembly and die unit as our moving web punch machine, these single punch units can vent a web at amazing speeds. Punches can be controlled with a timer, pulses from cam on bag machine or with a QMI P.L.C. control for greater versatility. With a mounting slot on the back surface they can easily be mounted to existing framework on most bag machines.
Three standard lengths of 4", 8", and 12" are in stock for immediate shipment.

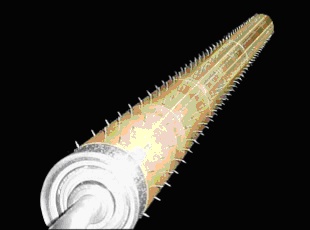

QMi Micro-perf Rolls
- State of the art technology
- Pattern programming, storage and retrieval
- Line speed following capacity
- Precise hole placement and pattern control
- Replacement parts
- Technical support available 24/7

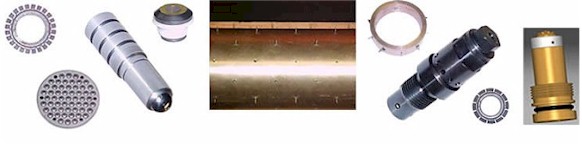

QMi OEM Hole Punch Parts
We stock all standard size punches, dies, housing bodies and other parts that fit our machines, as well as some made by other manufacturers so that they are available for same day shipment.
